modelGround
Visualizing the ground (box in z=0)
Extends from Modelica.Icons.ObsoleteModel (Icon for classes that are obsolete and will be removed in later versions).
Information

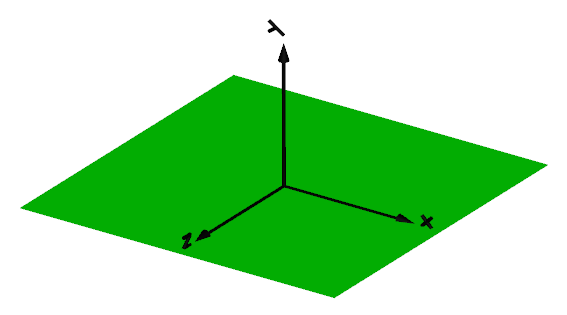

This shape visualizes the x-y plane by a box.
Parameters
| Type | Name | Default | Description |
|---|---|---|---|
| Boolean | animation | true | = true, if animation of ground shall be enabled |
| SI.Position | length | 10 | Length and width of box (center is at x=y=0) |
| SI.Position | height | 0.02 | Height of box (upper surface is at z=0, lower surface is at z=-height) |
| Modelica.Mechanics.MultiBody.Types.Color | groundColor | {0, 255, 0} | Color of box |
Components
| Type | Name | Default | Description |
|---|---|---|---|
| Modelica.Mechanics.MultiBody.Visualizers.FixedShape | ground | ||
| Modelica.Mechanics.MultiBody.Parts.Fixed | fixed |
