modelPistonEngine_DynamicStateSelection
A piston engine
Extends from Modelica.Icons.Example (Icon for runnable examples).
Information
This example contains an algebraic loop. A non-linear system must be solved for initialization and at simulation.
This version does not stipulate the state selection

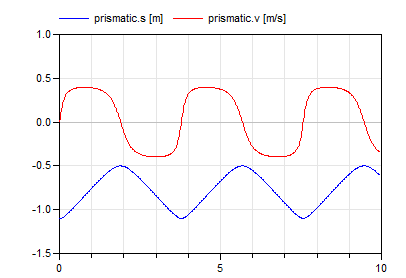

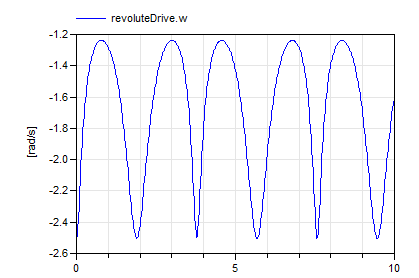

Selected continuous time states
- There are 2 sets of dynamic state selection.
- From set 1 there is 1 state to be selected from:
- prismatic.s
- revoluteDisc.phi
- revolutePiston.phi
- From set 2 there is 1 state to be selected from:
- prismatic.v
- revoluteDisc.w
- revoluteDrive.w
- From set 1 there is 1 state to be selected from:
Components
| Type | Name | Default | Description |
|---|---|---|---|
| Parts.Body | bodyDrive | ||
| Joints.Revolute | revoluteDrive | ||
| Parts.FixedTranslation | fixedTranslationDisc | ||
| Parts.Fixed | fixed | ||
| Joints.Prismatic | prismatic | ||
| Parts.Fixed | fixed1 | ||
| Joints.Revolute | revoluteDisc | ||
| Parts.FixedTranslation | pistonRod | ||
| Parts.Body | bodyPiston | ||
| Joints.Revolute | revolutePiston | ||
| PlanarWorld | planarWorld |
Revisions
Developed 2010 at the DLR Institute of System Dynamics and Control
