modelTestAntiWindupBlocks
Antiwindup TEST
Extends from Modelica.Icons.Example (Icon for runnable examples).
Information
Description
In this example has been tested the AntiWindup.
The images show the step responces of the transfer functions without limiter, and with an higher limit of Ymax = 1.8

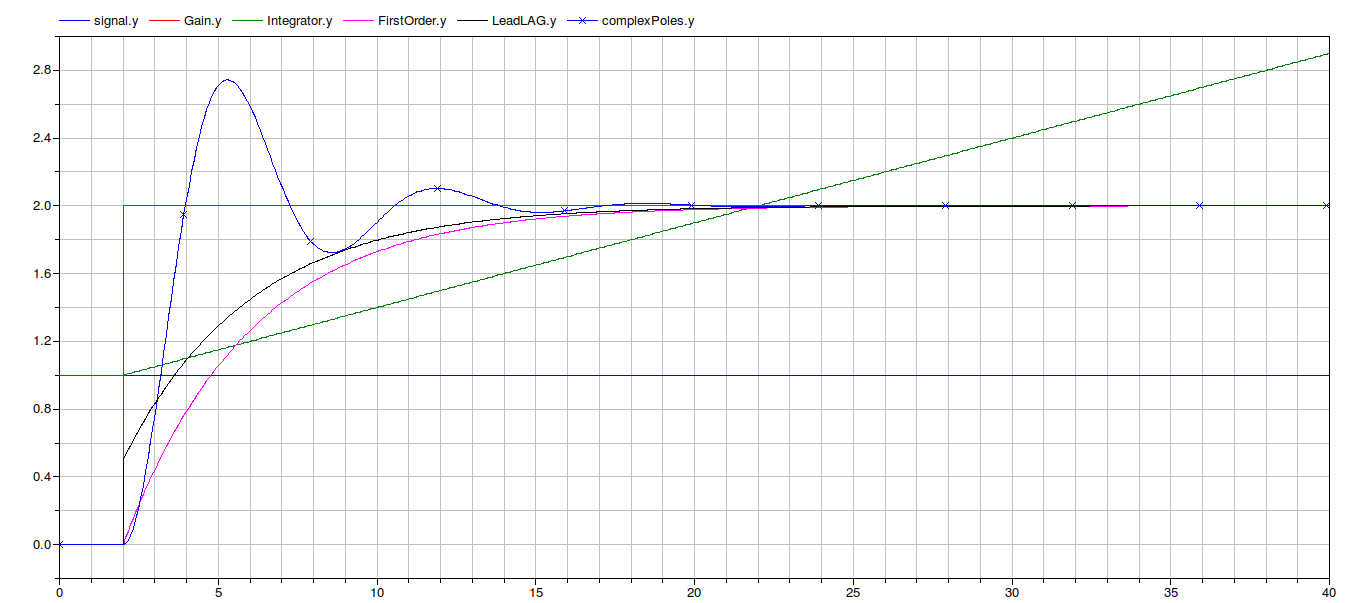

No Antiwindup

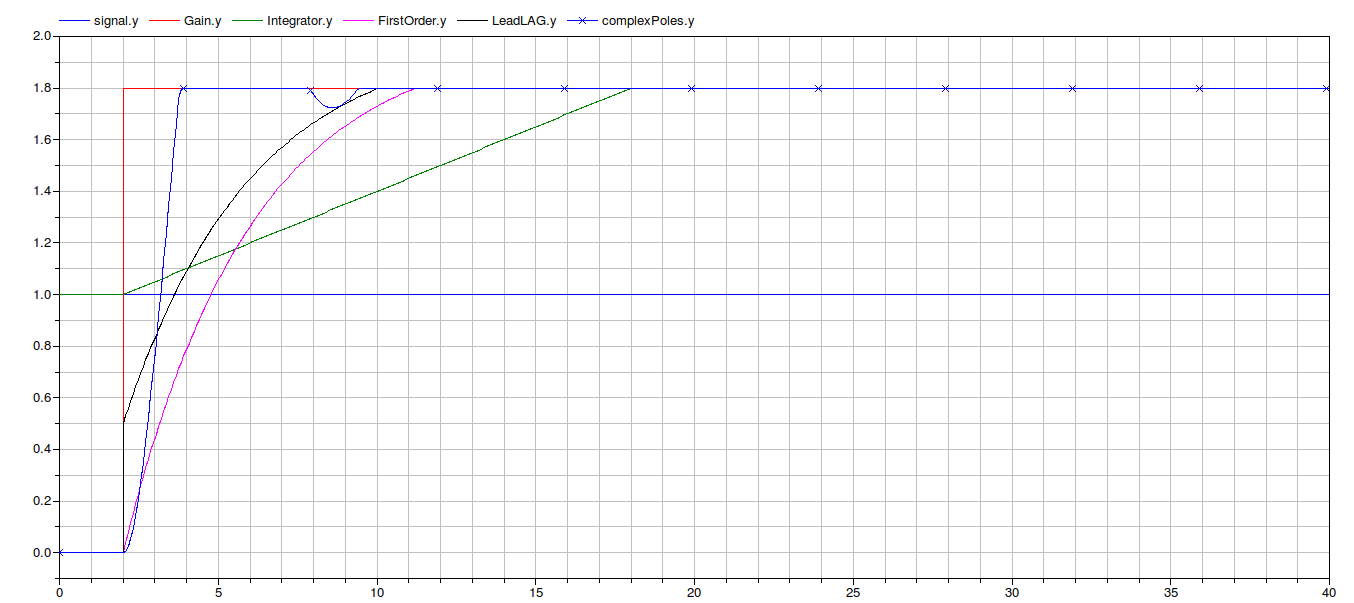

Antiwindup
Components
| Type | Name | Default | Description |
|---|---|---|---|
| Modelica.Blocks.Sources.TimeTable | signal | ||
| IndustrialControlSystems.Controllers.Blocks.P | Gain | ||
| IndustrialControlSystems.Controllers.Blocks.I | Integrator | ||
| IndustrialControlSystems.Controllers.Blocks.FO | FirstOrder | ||
| IndustrialControlSystems.Controllers.Blocks.LeadLAG | LeadLAG | ||
| IndustrialControlSystems.Controllers.Blocks.ComplexPoles | complexPoles |
