packageSimpleControlledDriveNonlinear

Collection of examples involving simple drive train

Extends from Modelica.Icons.ExamplesPackage (Icon for packages containing runnable examples).

Information

This package contains an example of a simple 1-dim. drive train and all classes demonstrating a possible usage of parameter credibility information within the context of this drive train. Most important:

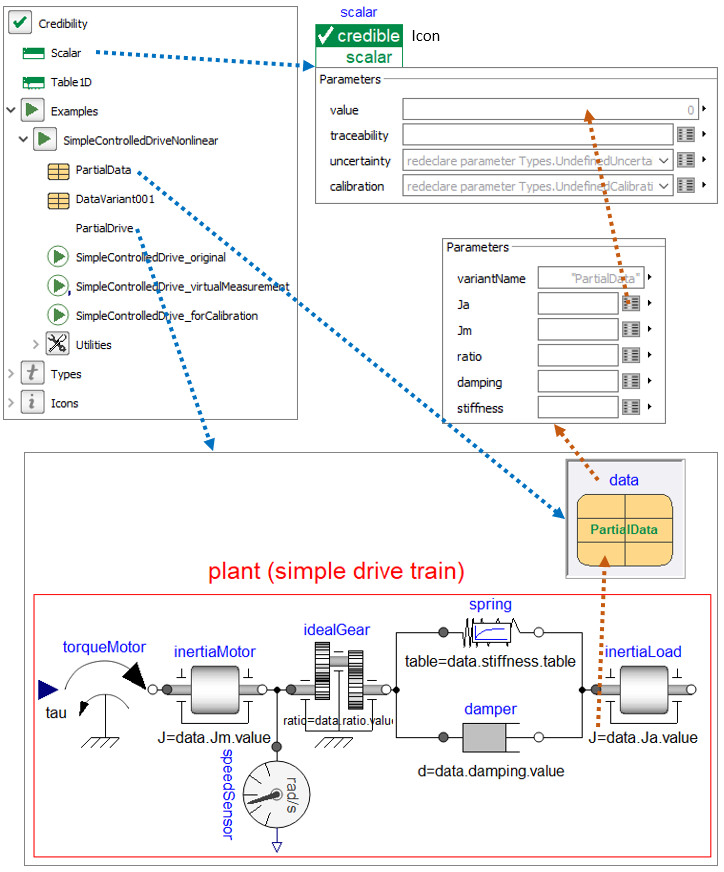

PartialDrive is a partial model of a drive train with credibility information. The structure can be seen in the following image (from [Otter2022]):

A screenshot of Modelica library Credibility together with parametrization of a drive train example

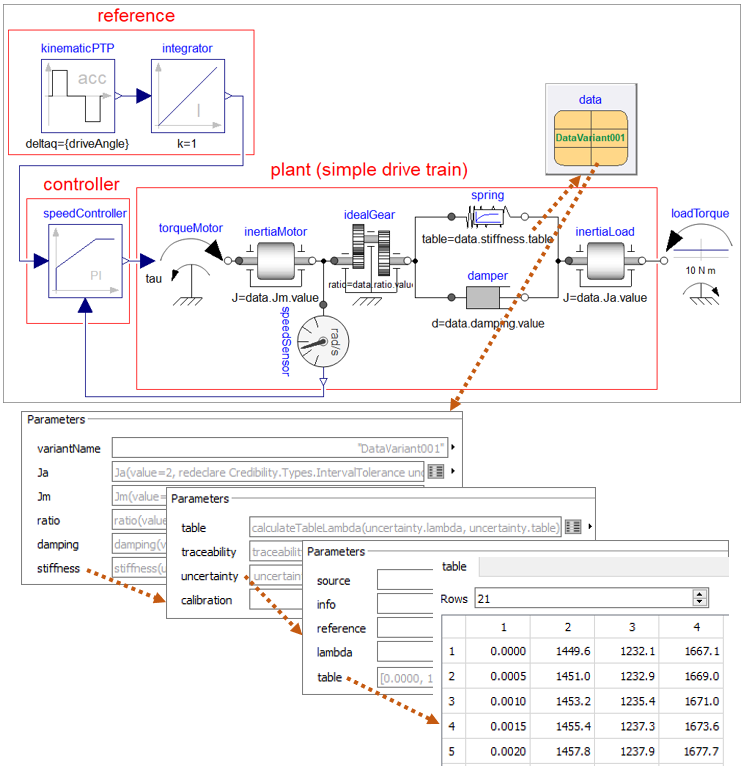

SimpleControlledDrive_original uses the partial model of the drive train, adds a controller and concrete values including credibility information by replacing the PartialData record with DataVariant001. In particular nominal, upper/lower limit values for the table of the gear compliance are provided (image from [Otter2022]):

A screenshot of component Credibility.Examples.SimpleControlledDriveNonlinear.SimpleControlledDrive_original

Contents

NameDescription
PartialDataBase record of credible parameters of simple control drive
DataVariant001Data set of model variant 001
PartialDriveNot calibrated drive model with nonlinear compliance
SimpleControlledDrive_originalControlled drive train
SimpleControlledDrive_virtualMeasurementDrive train for virtual measurements
SimpleControlledDrive_forCalibrationBase model for calibration
SimpleDrive_forFMUOriginal model parameterized with DataVariant001 for FMU generation
UtilitiesCollection of utility models for examples
