Test air drag model
Extends from Modelica.Icons.Example (Icon for runnable examples).
Information
Simple model to test air resistance. A body performs
circular movement around an origin of inertial frame (world).
The movement is decelerated due to air resistance of the body.

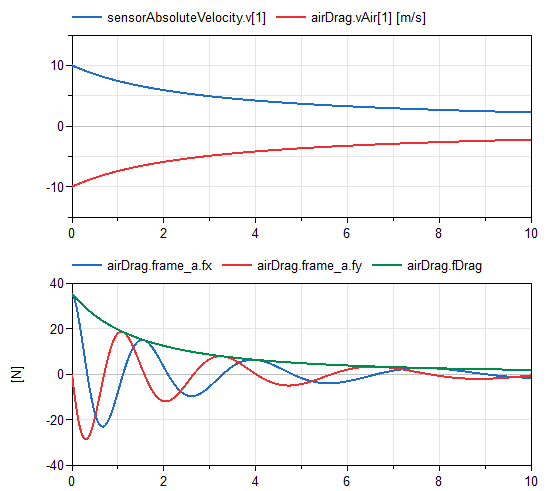

The following diagrams show the translational velocity of the body (above) and the drag force and its components (below).
Components
| Type | Name | Default | Description |
|---|---|---|---|
| AirResistanceLongitudinal | airDrag | ||
| Sensors.AbsoluteVelocity | sensorAbsoluteVelocity | ||
| Parts.Body | body | ||
| Parts.FixedTranslation | fixedTranslation | ||
| Joints.Revolute | revolute | ||
| Parts.Fixed | fixed | ||
| PlanarWorld | planarWorld |
Revisions
Developed 2010 at the DLR Institute of System Dynamics and Control
