.VehicleInterfaces

Information

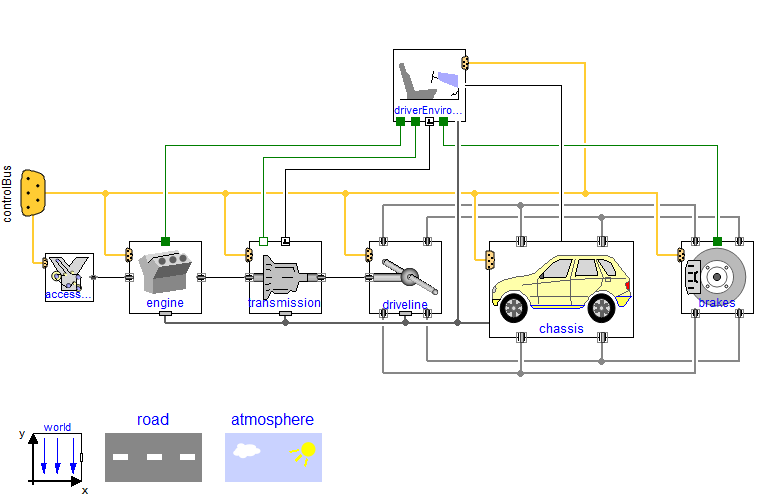

This Modelica library provides standard interface definitions for automotive subsystems and vehicle models. These are designed to promote compatibility between the various automotive libraries and provide a flexible, powerful structure for vehicle modelling. The main focus of the library is on defining the interfaces for the individual subsystems and a number of vehicle model examples are included to demonstrate how they might be used.

For an automotive library to be compatible with other libraries based on this set of interface definitions they should extend the interface definition from within this library and following the naming convention for the signal bus.

This library also contains a proposal for a naming convention covering the whole model library and the developers of this library would recommend that this convention is followed by other developers to ensure a consistent naming convention across the whole set of automotive models.

The library has been developed as a co-operation between a number of vendors who are currently developing automotive libraries. Please see the contact information on how to give feedback and for a list of the people involved in the development of this library. And last but not least, check also Copyright and License agreement before using the library.

Contents

Name Description
 UsersGuide User's Guide
 Examples Collection of vehicle model examples
 Blocks Collection of input/output fixed causality blocks
 Icons Collection of icons
 Interfaces Collection of general interface definitions
 Mechanics Collection of additional mechanical components
 Types Collection of type definitions
 Accessories Collection of accessory subsystem definitions
 Atmospheres Collection of atmosphere subsystem definitions
 Brakes Collection of brakes subsystem definitions
 Chassis Collection of chassis subsystem definitions
 Controllers Collection of controllers subsystem definitions
 DataDictionaries Collection of data dictionary definitions
 Drivelines Collection of drivelines subsystem definitions
 DriverEnvironments Collection of driver environment subsystem definitions
 Drivers Collection of driver subsystem definitions
 ElectricDrives Collection of electric drive subsystem definitions
 EnergyStorage Collection of energy storage subsystem definitions
 Engines Collection of combustion engine subsystem definitions
 PowertrainMounts Collection of powertrain mounts subsystem definition
 Roads Collection of road definitions
 Transmissions Collection of transmission subsystem definitions
